Product description

01.

Standard features

Equipped with a fully automatic in-house assembly integrated operation module, it can be flexibly customized according to customer products.

02.

Standard features

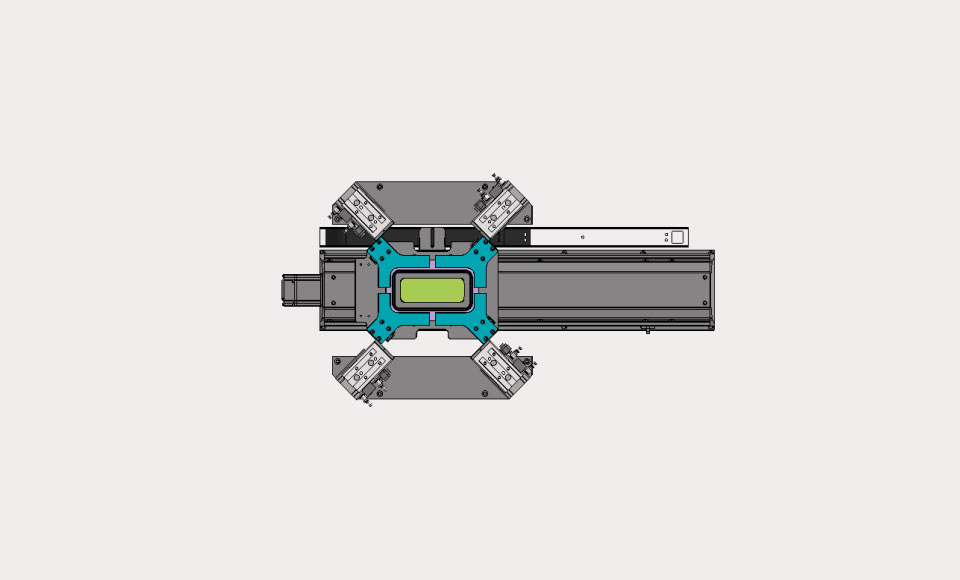

Equipped with a platform movement mechanism
to facilitate manual loading and unloading.

03.

Standard features

Equipped with a global PLC automatic control system including high-precision thermal control and attached hot melt adhesive.

04.

optional features

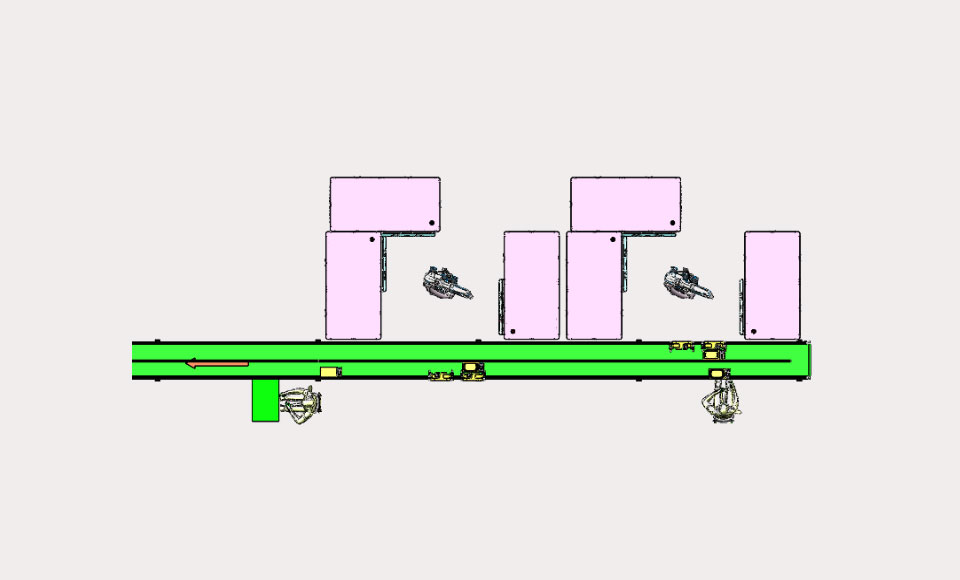

The docking robot realizes automatic loading and unloading functions
without the need for direct operation by operators.

Product Specifications

Machine size	130013002000mm	Machine weight	About 1000KG
Sports platform	Servo motor movement (repetition accuracy: ≤0.02mm)	Power supply	AC220V/4KW
Control System	PLC+touch screen	Mobile loading platform	Customized according to customer products
Heating system	25-300°, accuracy ±2°	maximum movement speed	200mm/s

Applications

This product is used for the inner wrapping and lamination of leather and fabrics with adhesive backing on the substrate, especially for the inner wrapping and lamination of curved products, etc., replacing manual and inefficient operations.
