Product description

01.

Standard features

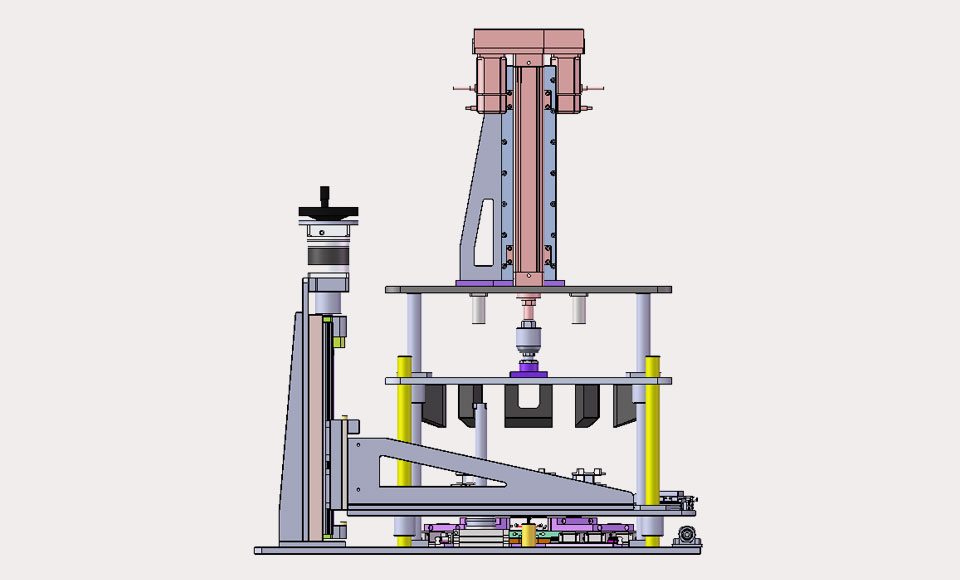

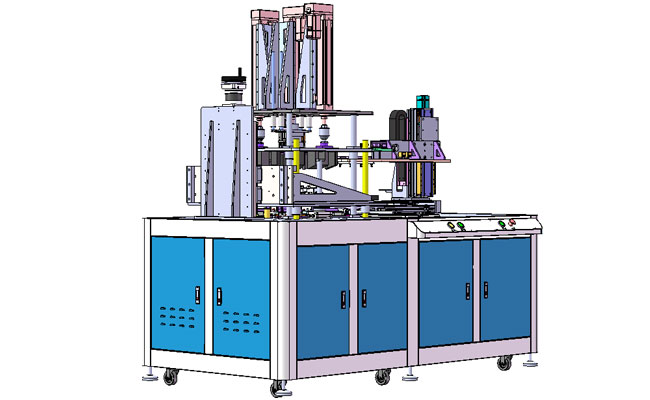

Equipped with a fully automatic outsourced assembly integrated operation module, it can be flexibly customized according to customer products.

02.

Standard features

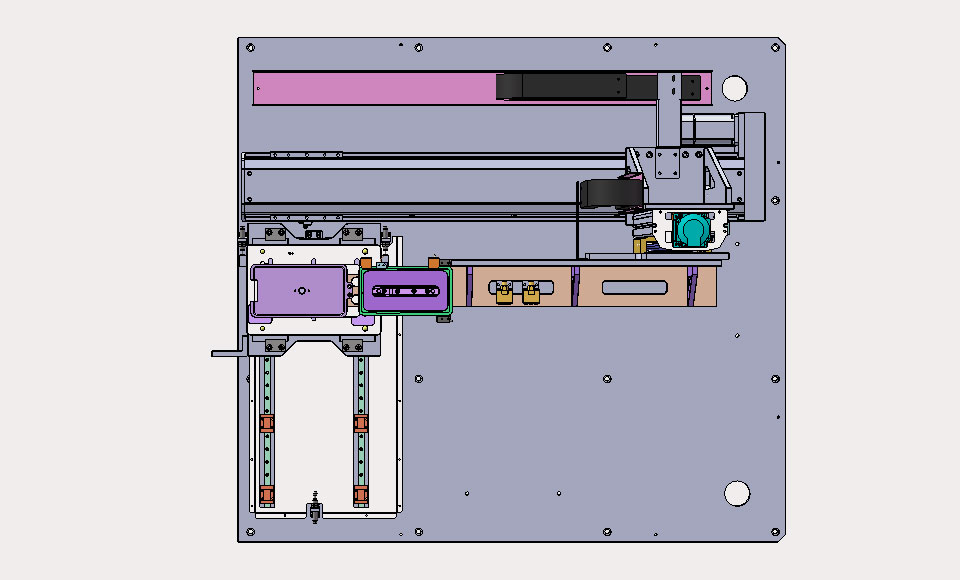

Equipped with an automatic platform
feeding mechanism to facilitate manual loading and unloading.

03.

Standard features

Equipped with a global PLC automatic control system including high-precision thermal control and attached hot melt adhesive.

04.

Optional features

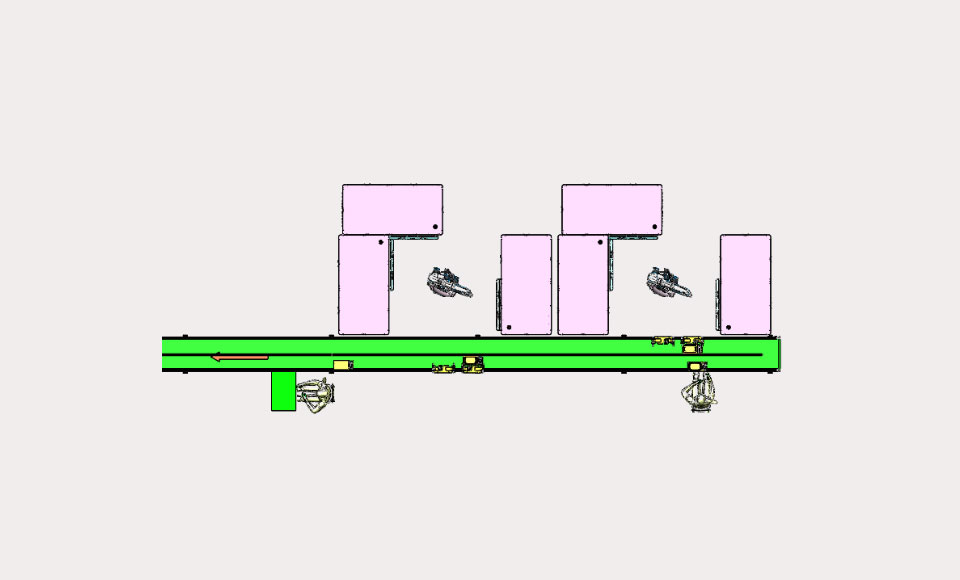

The docking robot realizes automatic loading and unloading
functions without the need for direct operation by operators.

Product Specifications

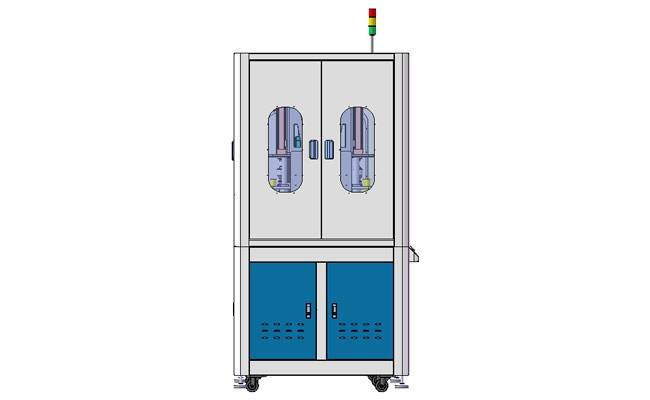

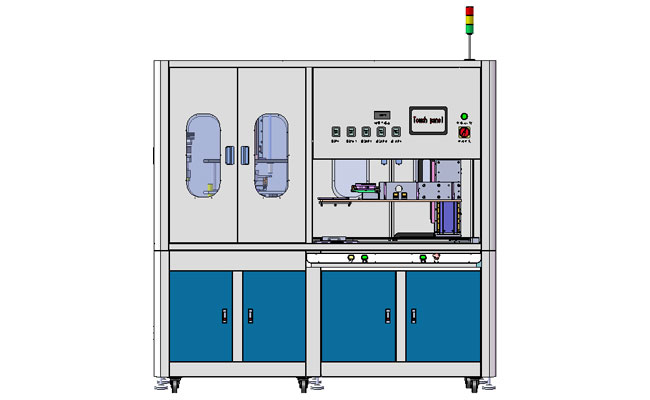

Machine size	205010302000mm	Machine weight	About 1000KG
Sports platform	Servo motor movement (repetition accuracy: ≤0.02mm)	Power supply	AC220V/5KW

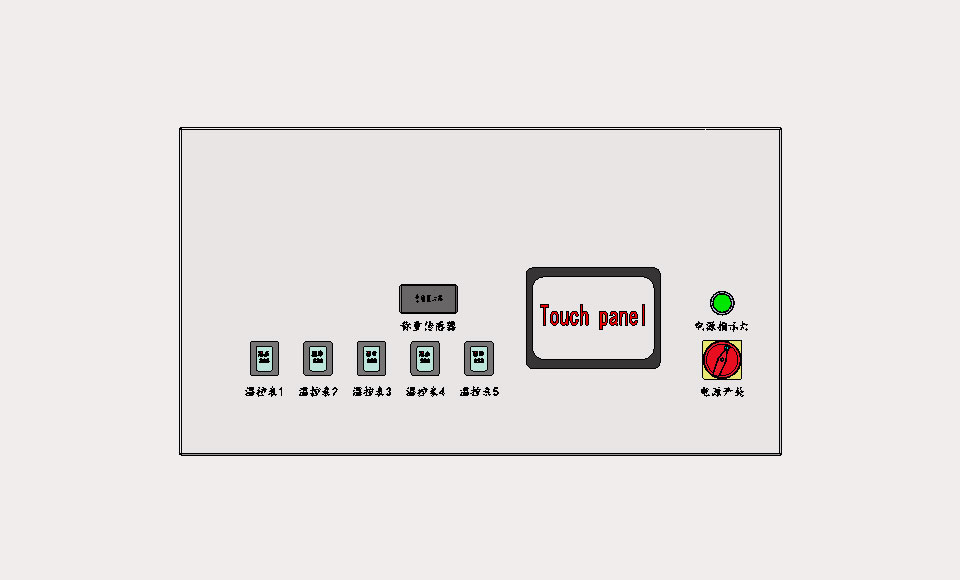

Control System	PLC+touch screen	Mobile loading platform	Customized according to customer products
Heating system	25-300°, accuracy ±2°	maximum movement speed	200mm/s

Applications

This product is used for outsourcing and laminating adhesive-backed leather, fabric, etc. on the substrate, especially for outsourcing and laminating curved products, replacing manual and inefficient operations.
